It is here and available NOW, the coolest RV-6-7-9 tank ever made.

A custom flush fit tank for RV airplanes. This tank will not use ANY of your baggage compartment space and unless you look close you will not even notice the tank in the airplane. Ultra simple installation. Holds 4.25 gallons of smoke oil. Leaves all other tanks in the dust. Do not put an ugly tank in your airplane, this one is as beautiful as it is practical.

SMOKE OIL

5 Gallon container $65.

55 Gallon barrel $475.

Very low cost shipping on barrels. I will need your address by email to compute shipping cost.

____________________

All tanks have aerobatic flop tubes installed. Universal tanks have 1 inch mounting tabs on each end. All filler caps are vented so no other vent is necessary UNLESS you wish to fly sustained inverted then look in the "Individual Parts" page for the inverted vent system. Simple rolls and loops are ok with the vented cap.

3 gallon universal tank

225.00 USD

3 gallon universal tank with flop tube. Fits any airplane that has a floor to sit it on. Dimensions 12 x 8 x 8 plus mounting tabs. Weight is 4 lbs.

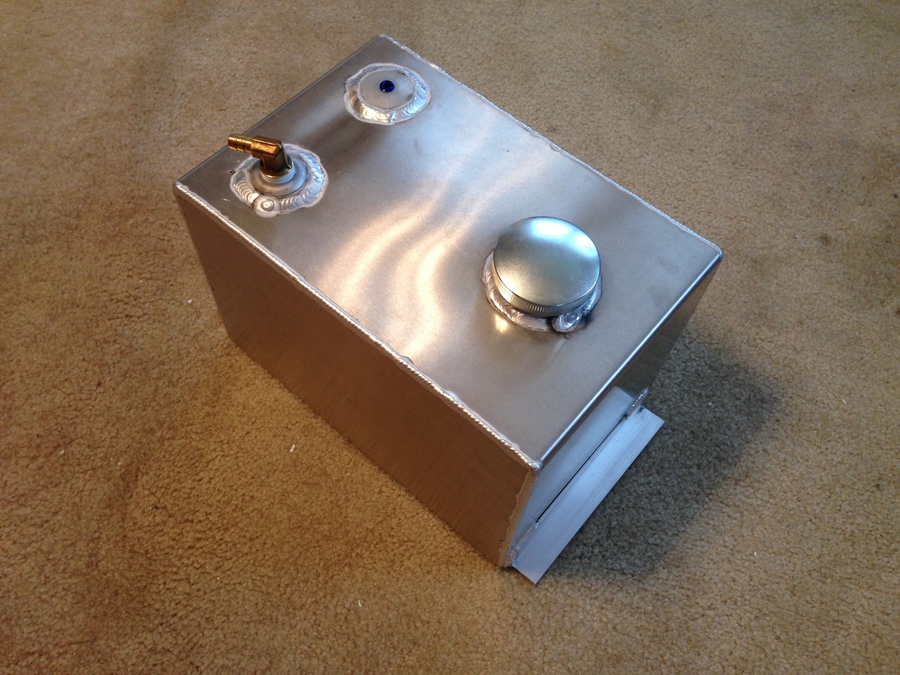

3 gallon universal tank

4 gallon universal tank

225.00 USD

4 gallon universal tank with flop tube, fits any airplane that has a floor to sit it on. Dimensions 12 x 9 x 9 1/2 plus mounting tabs. Weight is 4 lbs 8 ounces..

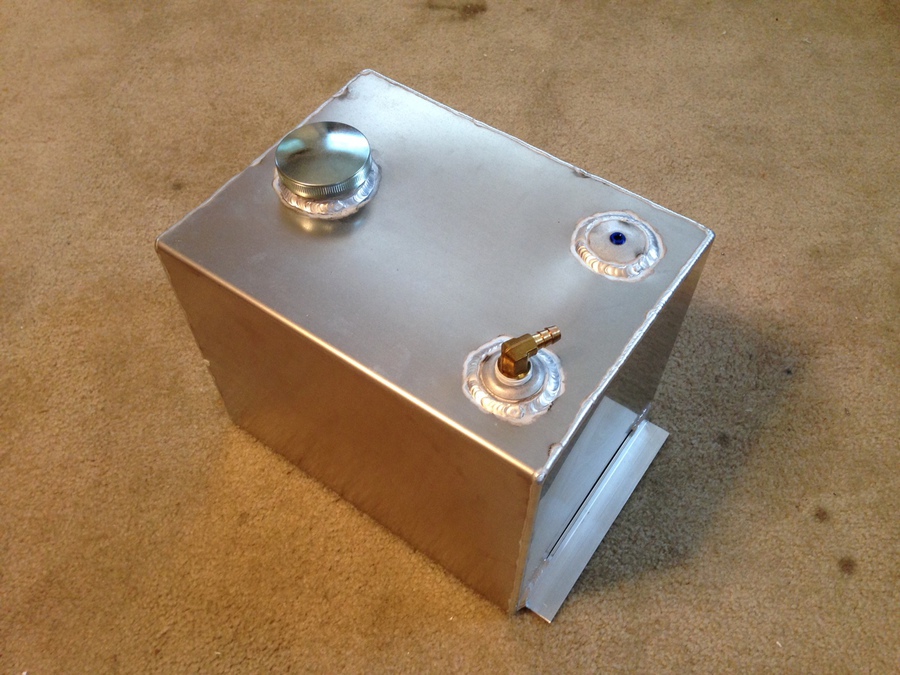

4 gallon universal tank with flop tube

5 gallon Universal Tank

250.00 USD

This tank will fit nearly any airplane BUT it was made to fit in the RV-4 and RV-8 rear baggage area and leave room to mount the pump on the tank. Tank is 11 wide, 13 1/2 long, and 9 high with 1 inch mounting tabs. Weight is 5 lb 9 oz

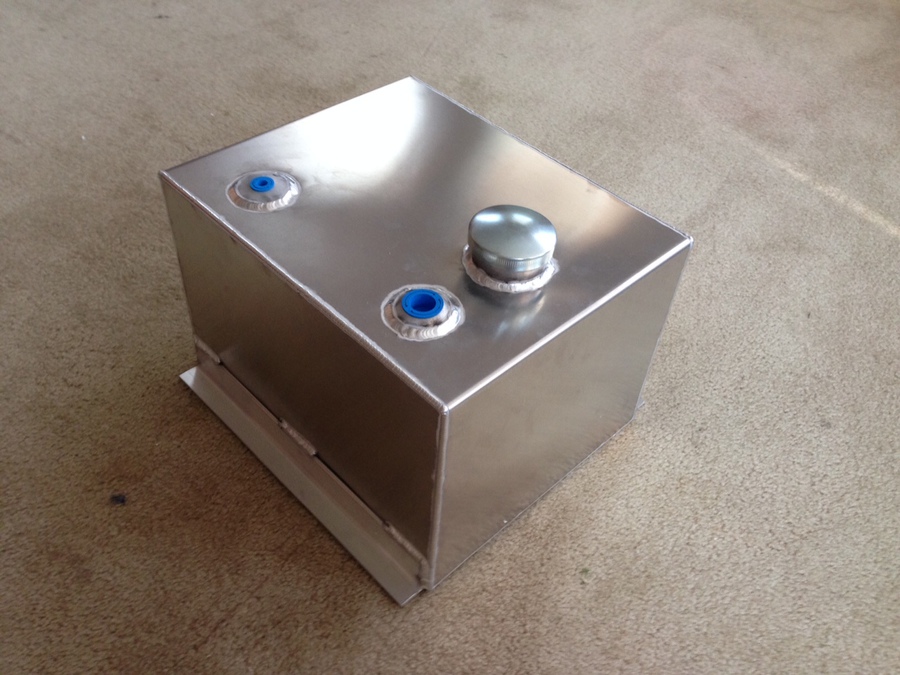

Universal 5 gallon also fits RV-4 and RV-8 rear baggage

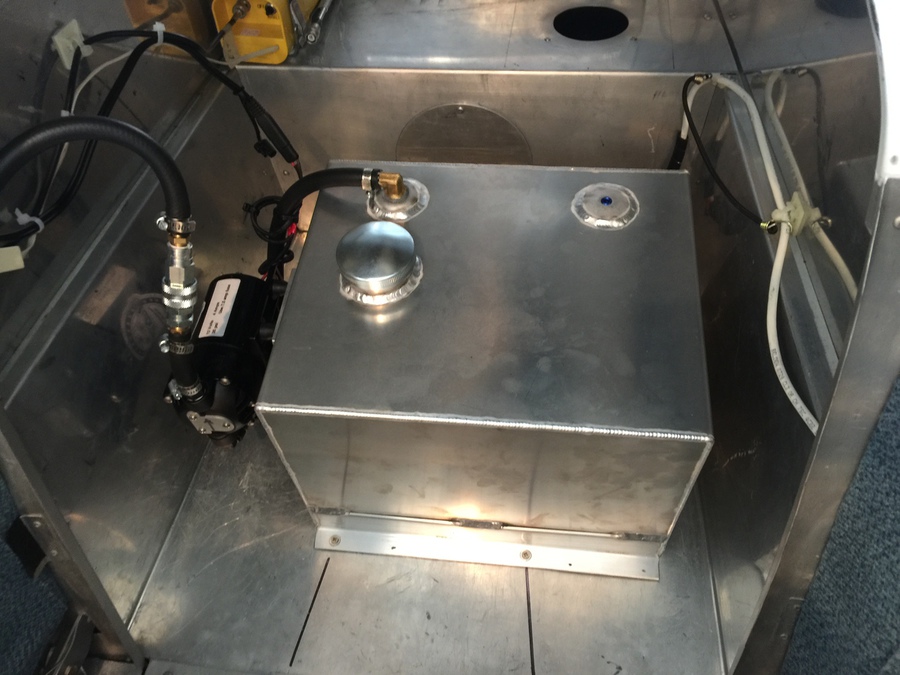

Tank installed in RV-4

RV-8 "hidden" tank 4 gallons

250.00 USD

4 gallon tank custom made to fit in the forward deep well of the RV-8. It does not protrude above the floor of the main baggage compartment. Dimensions 12 1/2 x 7 x 12 Weight is 4 pounds 8 ounces.

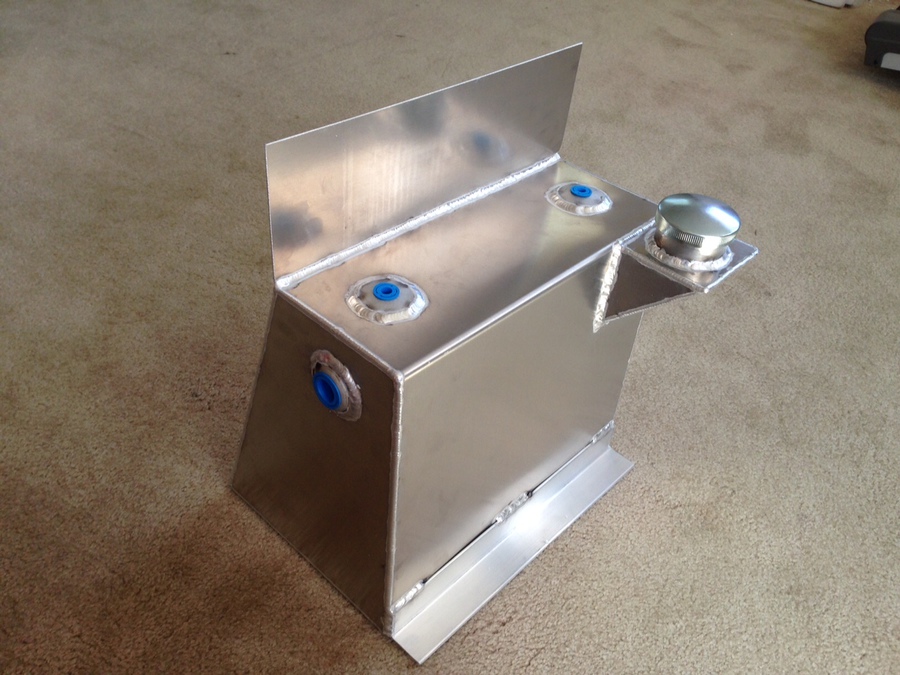

4 gallon "hidden" tank for RV-8 forward deep well

8 gallon universal tank

325.00 USD

8 gallon universal tank with flop tube, fits any airplane that has a floor to sit it on but mainly used in WARBIRDS and anyone who needs a LOT of smoke oil. Dimensions 12 1/2 x 12 1/2 x 12 1/2 plus mounting tabs. Weight 7 lbs 0 oz

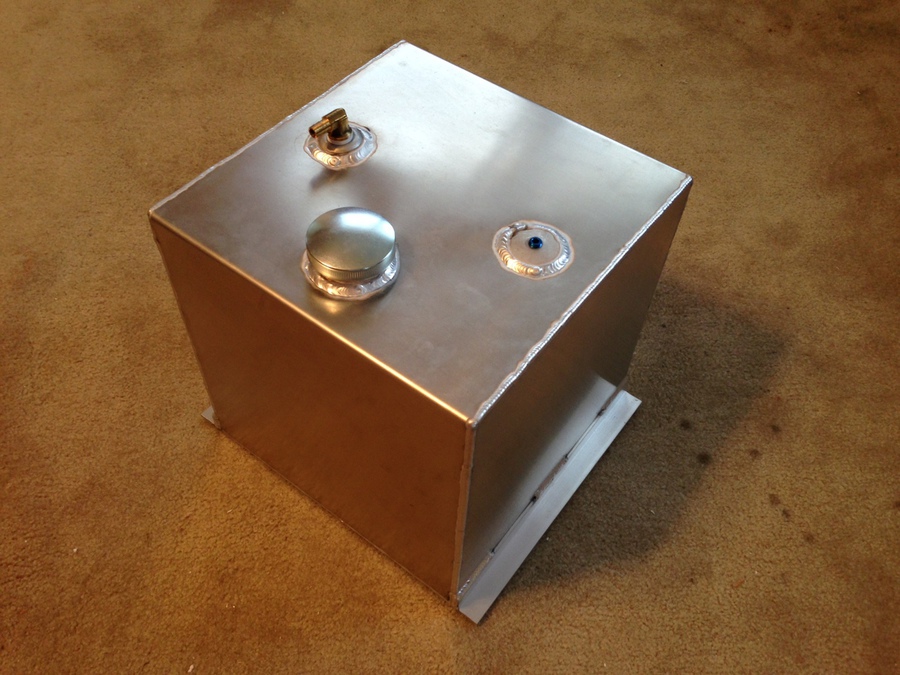

8 gallon universal tank

RV-14 Tank 4.7 Gallons

325.00 USD

4.7 gallon custom tank for the RV-14 This tank is "hidden" behind either the left or right seat and takes up no baggage space. Paint it to match your interior and it is nearly invisible.

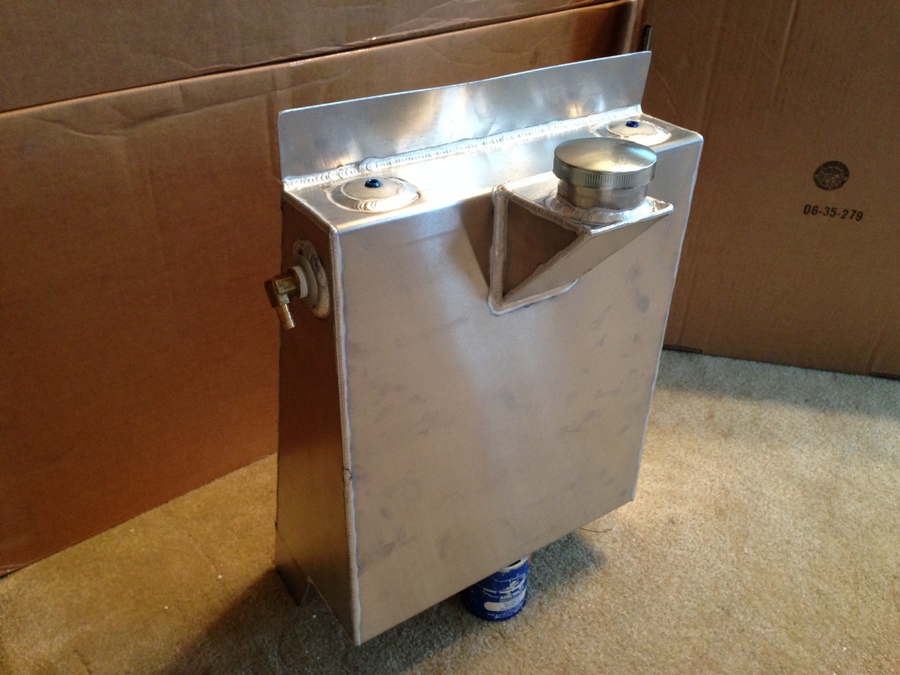

RV-14 Custom Tank 4.7 gallons

RV-6-7-9 tank 4.25 gallons

325.00 USD

4.25 gallon custom tank for RV-6-7-9 This tank is "hidden" behind either the pilot or passenger seat back. It takes up no baggage space and is nearly invisible to the casual observer. Weight 5 lbs 5 oz.
Also available in 7 gallon version for a LOT of smoke oil.

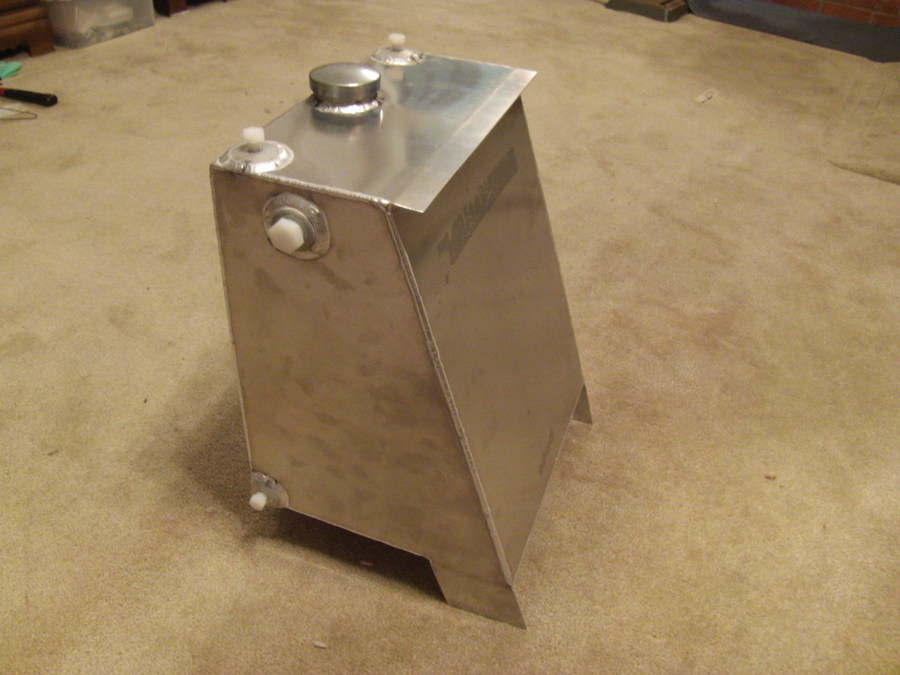

4.25 gallon "hidden" tank for RV-6-7-9. Also available in 7 gallon size.

7 Gallon Oil Tank for RV-6-7-9

400.00 USD

For those RV-6-7-9 fliers who want a lot of smoke oil without using much of your baggage space.. This tank fits behind either seat in the RV-6-7-9 and only protrudes into the baggage area by 3 inches.

7 Gallon "hidden" tank for RV-6-7-9
